300mm Wire Rope Flaw Detector Machine For Ropeway Lifting Equipment
Wire Rope Flaw Detector With Function Of Displaying Defects Curve, Analyzing And Generating Report
Features:
● Detect internal /external wire breakage, abrasion, corrosion, deformation, loose strands, wire jumping and material changes.
● Automatically calibrating online and analysising defects
● Directly sampling and processing analysis , Real-time results display
● Display defects curve, analyze and generate the report
● Dectect damage (LF) and metal cross-sectional area changes (LMA), display directly in the report
● Applicable to various industry standards
● The sensor guide sleeve adopts alloy material of high sensitivity and high abrasion resistance
● Waterproof, dustproof, oil proof, and moisture proof
● The software adapts to various Windows operating systems
● Meets ASTM E1571-2006 and GB/T2137-2008 standards
● Testing certificate from National Metrology Institute is available for every set of euipment
Technical Parameters:
| Technical Parameters |
| Model | LBGS600 |
| Diameter of the wire(mm) | Φ1.5-300 mm ( need to equiped with different sensors) |
| Relative speed between sensor and wire rope | 0.0～6.0 m / s ( Best: 0.3～1.5 m/s) |
| Allowed distance between sensor and wire rope | 0～15mm ( Best: 2～6 mm) |
| Qualitative detection accuracy (LF) | 99.9% |
| Quantitative detection accuracy (LF) | 95% |
| Detection sensitivity tolerance (LMA) | ± 0.05% |
| Detection accuracy tolerance (LMA) | ±0.2％ |
| Axial position detection tolerance (L) | ±0.2％ |
| Power supply | computer battery 5V, interflow (AC220 ±10％); |
| Weight of sensor | ≦10kg ( except customized sensor) |
| Working temperature | -20℃～40℃ |
| Moisture | ≤85％RH |
| Standard Configuration | Standard Sensor ( ≦ 58mm; select based on the specific detection range), PC software, Converter, Cables (set) |
| Optional Accessories | Computer, different sensors
|
Application:
● Quickly and accurately scaning, evaluation and diagnosis of various flaws in wire rope.
● For regular Inspection and Maintenance of Wire Rope
● Widely used in Mining industry, Ropeway, Lifting equipment, Elevator, Port Machinery, Cable Bridge and many other fields.
Test
Fast and accurate scaning, evaluation and diagnosis of various flaws on wire rope.
such as internal /external breakage, abrasion, corrosion, loose strands, wire jumping and etc.
Judge
The test data provide a basis for judging whether the wire rope should be scrapped or continue to be used.
Application 1: Elevator

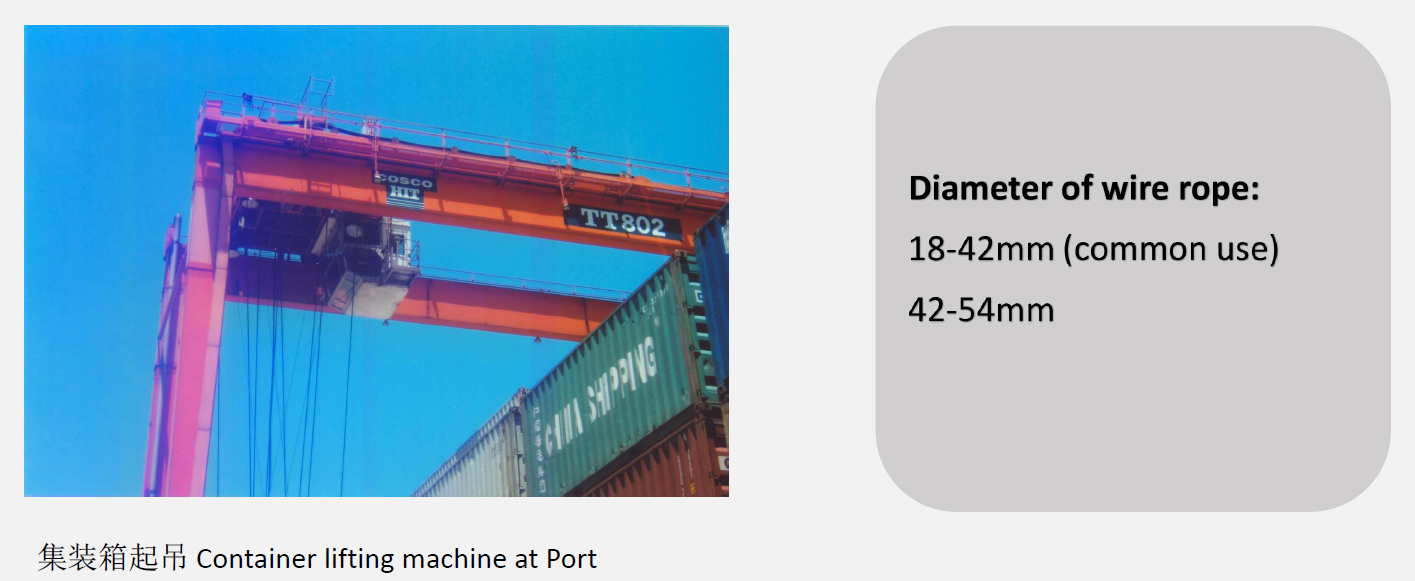

Application 2: Lifting machinery

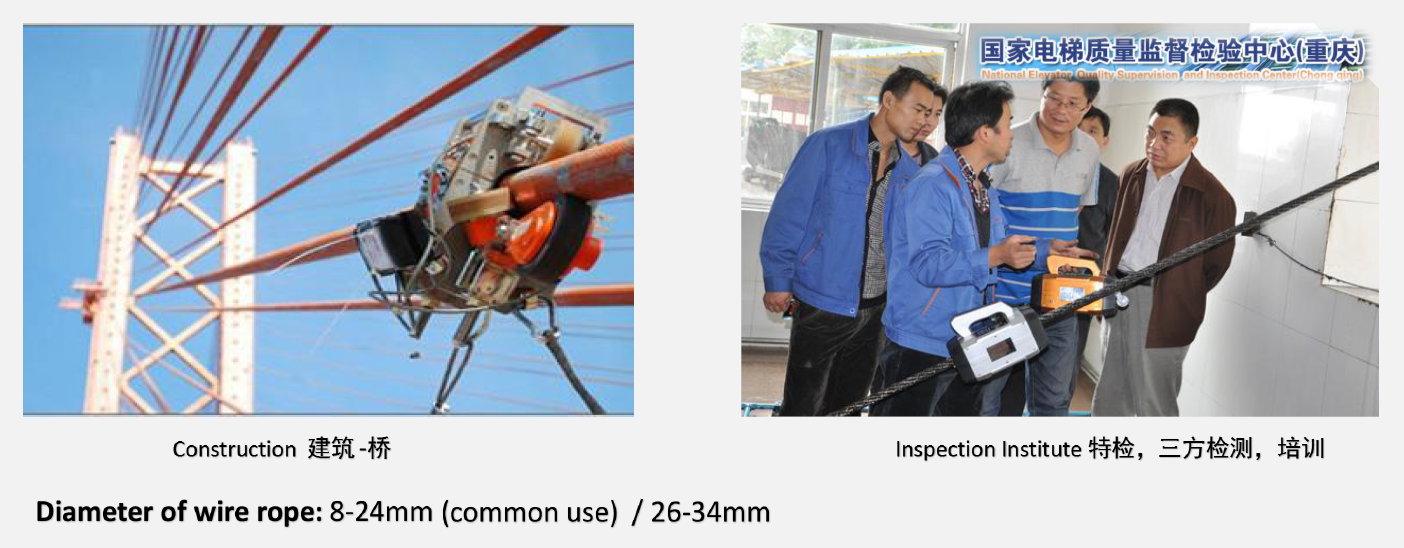

Application 3: Construction

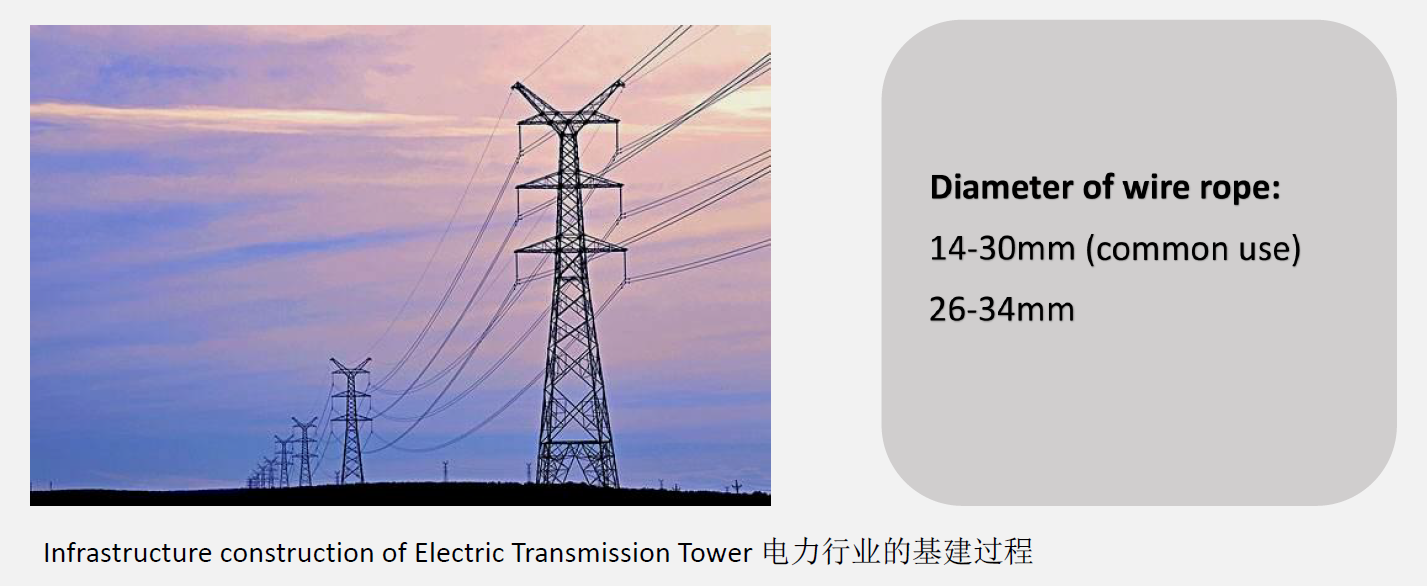

Application 4: Electric power

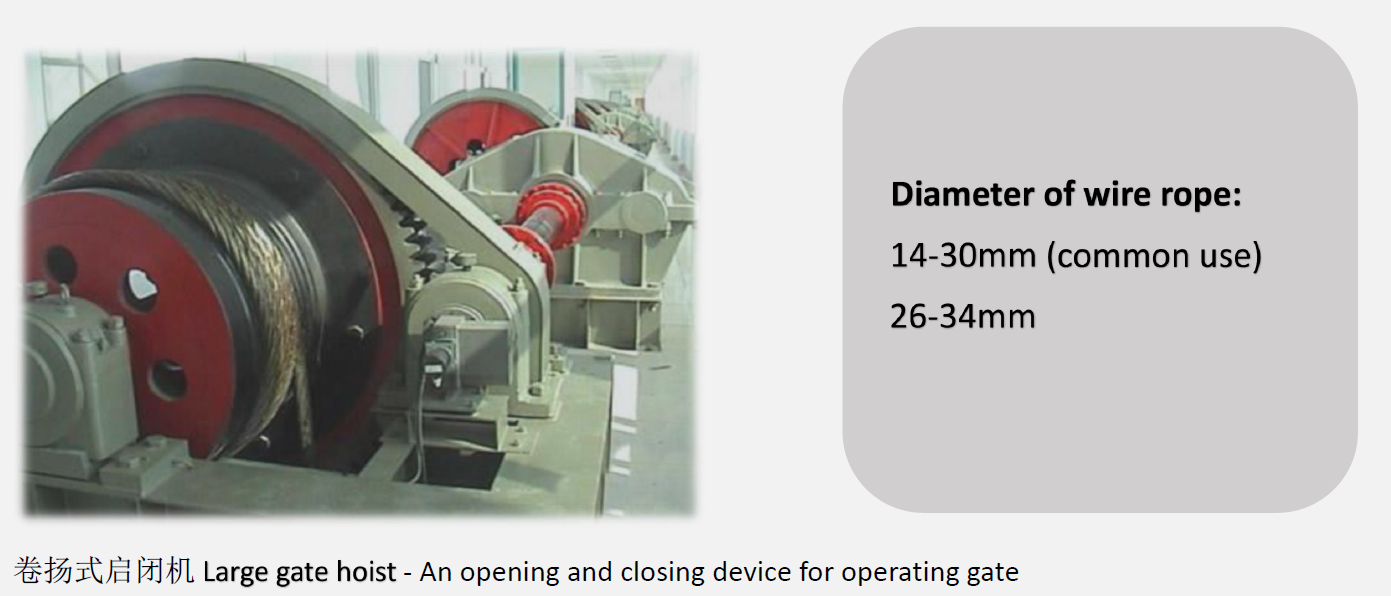

Application 5: Water conservancy
Application 8: Hanging wire
